Replace Flygt T05-35mm Pump Mechanical Seal with DIN24960 Standard and 35mm Size
برای نمونه و کوپن رایگان با من تماس بگیرید.
واتساپ:0086 18588475571
وی چت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.
xجزئیات محصول
| اندازه | 35 میلی متر | ماده | کاربید تنگستن TC |
|---|---|---|---|
| ماده صندلی | کاربید تنگستن TC | مواد الاستومری | VITON FPM |
| قطعات فلزی | SS316 Hastelloy C AM350 | حداکثر فشار | 1.5 مگاپیکال |
| سرعت | 15 متر در ثانیه | دامنه دما | -20 درجه سانتیگراد 180 درجه سانتیگراد |
| مدل | T05-35mm | کد HTS | 8484.20.00 |
| استانداردهای انطباق | DIN24960 ، ISO3069 ، EN12576 ، API682 | مهر ثانویه | VITON FPM |
| گزینه های مادی | کاربید تنگستن ، کاربید سیلیکون ، گرافیت کربن ، آلومینا | ماده حلقه O | بستگی به مواد داره |
| سازگاری پمپ | مدل های پمپ Flygt 1335.181 ، 2024 ، 2056 و غیره | ||
| برجسته کردن | Replace Flygt T05-35mm Pump Mechanical Seal,35mm Pump Mechanical Seal,DIN24960 Standard Pump Mechanical Seal,35mm Pump Mechanical Seal,DIN24960 Standard Pump Mechanical Seal |
||
توضیحات محصول

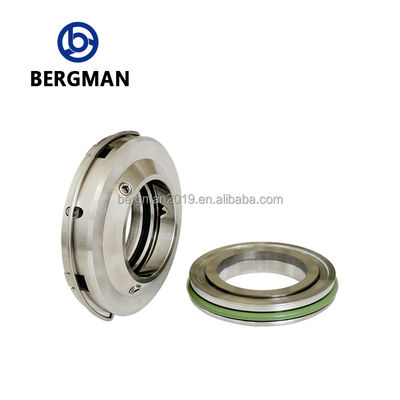

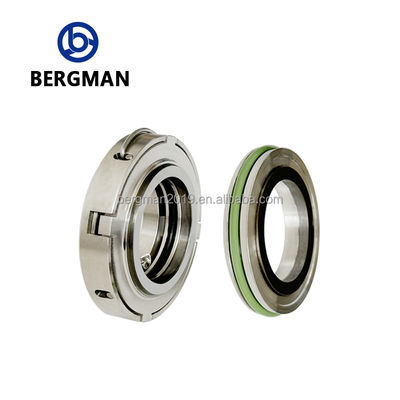

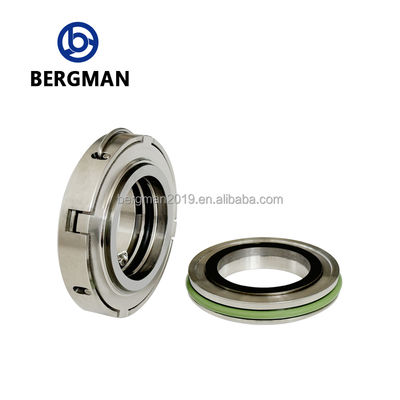

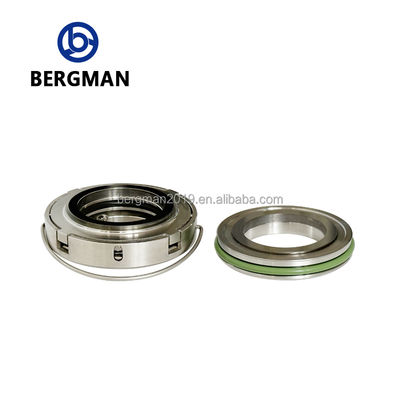

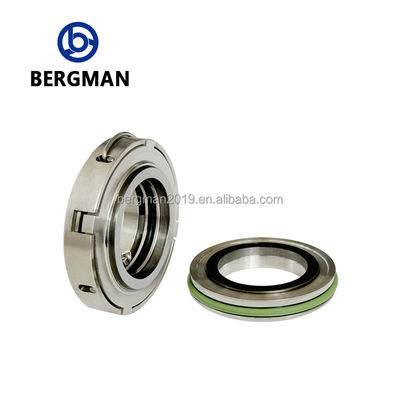

Replace Flygt T05-35mm 3127 4440 5530 Pump Mechanical Seal
Product Overview
Guangzhou Bergman Mechanical Seals Co., Ltd. offers high-quality mechanical seals designed for Flygt pumps, meeting international standards with durable materials and precise engineering.
| Specification | Details | Specification | Details |
|---|---|---|---|
| Name | Mechanical Seal | Size | Standard size (20mm, 25mm, 35mm) |
| Brand | BERGMAN | Model | T05-35mm |
| Pressure | ≤ 1.5mpa | Line speed | ≤ 15m/s |
| Temperature | -20°C-180°C (Depends on O-ring material) | Application | Flygt pump |
| Face | Tungsten carbide TC | Seat | Tungsten carbide TC |
| Secondary seal | VITON FPM | Metal parts | SS316 Hastelloy C AM350 |
| Certificate | ISO9001-2015 | Service | OEM customization service |
Compatible Flygt Pump Models
1335.181, 2024, 2056, 2102.220, 2050, 2052, 2060, 2066, 2070, 2071, 2075, 2082, 2084, 2090, 2095, 2101, 2012, 2102, 2125, 2135, 2140, 2151, 2201, 2250, 2400, 2610, 2620, 2630, 2660, 2670, 2730, 2740, 3041, 3045, 3050, 3057, 3060, 3065, 3066, 3067, 3068, 3069, 3080, 3082, 3085, 3101, 3102, 3126, 3127, 3140, 3151, 3152, 3153, 3170, 3171, 3200, 3202, 3230, 3231, 3300, 3301, 3306, 3310, 3311, 3350, 3351, 3356, 3400, 3501, 3530, and full range of Flygt pump mechanical seals.
Key Features
- Complies with DIN24960, ISO3069, EN12576, API682 standards
- Can replace original seals with cost-effective options
- 2,000+ square meters warehouse with large inventory for fast delivery
- Can replace Burgman, John Crane, AES and other world-renowned brands
- OEM and customized services available
- Factory-direct pricing with excellent quality and fast delivery
- Comprehensive range of Flygt pump mechanical seals
Material Advantages
We use wear-resistant materials including tungsten carbide, silicon carbide, carbon graphite, alumina, rubber seals, PTFE seals, and O-rings for superior performance and longevity.
Company Profile
Guangzhou Bogman Mechanical Seals Co., Ltd. (formerly Guangzhou Yongfa Mechanical Seals Co., Ltd.) was established in 1996. After more than 20 years of development, Guangzhou Bogman Mechanical Seals Co., Ltd. was established in 2019, and Guangdong Bogman Seals Co., Ltd. was established in 2023. The company has passed the quality management system GB/T19001-2016 idt ISO9001:2015 certification.
We specialize in world-renowned pump mechanical seals, including axe mechanical seals, fluid mechanical seals, metal bellows mechanical seals, container mechanical seals, rubber bellows mechanical seals, O-ring seals, PTFE mechanical seals, stainless steel oil seals, skeleton oil seals, hydraulic oil seals, and automotive water seals. Our materials include cemented carbide, silicon carbide, carbon graphite, and alumina.
Located in Guangzhou with convenient access to Guangzhou Port, Shenzhen Port, and Foshan Port, we maintain a 2,000+ square meter warehouse for efficient logistics and quick delivery.
Exhibition and Warehouse
We maintain over 2,000 square meters of spot warehouses with more than a thousand product varieties available for immediate shipment.
Production Workshop
Our facility features modern advanced machine tool equipment, dust-free workshops, inspection equipment, and assembly line operations.
Application Range
Widely used in pipeline pumps, centrifugal pumps, sewage pumps, chemical pumps for petroleum, chemical, aerospace, pharmaceutical, food, and agricultural irrigation applications.
Frequently Asked Questions
Q: Are you a factory or a trader?
A: We are a production factory with our own international trade department.
Q: Where is your factory located?
A: Our factory is located in Guangzhou City, near Guangzhou Port and Shenzhen Port. Other ports can be selected based on customer needs.
Q: How many days is your delivery time?
A: Stock items ship immediately after payment. Custom items require 10-25 days for production, depending on order quantity and type.
Q: Do you provide free samples?
A: We typically don't provide free samples, but sample costs can be refunded after order placement.
Q: What is your payment terms?
A: Stock items: 100% prepayment. Custom items: 30% deposit, 70% before shipment. We accept T/T, PayPal, Western Union, and Alibaba payments.
Q: Can you customize products not in your catalog?
A: Yes, we welcome OEM and custom product requests.
Contact Us
International Trade
Li Wei: Mobile +86-15622176299
Yang Yingjie: WeChat/WhatsApp +86-15627223988
Yang Aijun: WeChat/WhatsApp +86-13602719849
Email: bergman168@outlook.com
